Properly managing your BlackVue dashcam’s power ensures reliable operation and protects your recordings. Use this guide to understand the correct way to power your dashcam on/off and check your vehicle or battery power supply.
How your dashcam boots and powers off
Most BlackVue dashcams automatically turn on and off with the vehicle’s ignition or according to the connected power source.
Typical booting process
- Ignition-based power (hardwired or cigarette lighter):
- When you start the car, the dashcam automatically receives power and begins booting.
- You’ll hear a boot chime (“BlackVue for your safe driving”) and see the LEDs light up.
- Boot sequence usually takes 10–20 seconds for full readiness.
- With external battery pack (e.g., B-124X, B-130X):
- Dashcam powers on as soon as the external battery is activated, even if the vehicle is off (for parking mode).
- The external battery provides a stable voltage and can keep the dashcam running for hours when parked.
Powering off the dashcam
- Ignition-based:
- Turning off the vehicle ignition removes power and the dashcam safely shuts down. Wait for power and recording LEDs to turn off fully before ejecting the SD card or removing cables.
- External battery:
- The dashcam powers off when the battery reaches its preset cutoff or the battery pack itself is switched off.
- Manual shut-off (rare):
- Some dashcams may be turned off via a physical switch or by disconnecting the power cable.
- Never unplug while files are being written or before the camera’s LEDs have fully turned off to avoid data corruption.
Checking vehicle and battery power
Ensuring stable power prevents unexpected shutdowns and data loss.
Vehicle power supply checks
- Check the power cable and fuse in the cigarette lighter or hardwiring kit.
- Replace a blown fuse if the dashcam doesn’t turn on when the ignition starts.
- Wiring (hardwiring installations):
- Confirm all connections are tight and correct (ACC, BATT, GND).
- Use a voltmeter to verify correct voltage at the power input.
- For frequent power drops or restarts:
- Inspect cable and socket for wear/damage.
- Consider using a voltage monitoring accessory (like Power Magic Pro) for added protection against battery drain.
Battery and external battery checks
- Check charge level:
- Battery packs with Bluetooth or a companion app (e.g., B-124X, B-130X) show charge status and estimated runtime.
- Inspect battery health:
- Ensure status LEDs behave as expected (see your battery’s user manual).
- Replace the battery if it cannot hold charge or fails to power the dashcam reliably.
- Troubleshooting no power:
- If no lights or sounds are produced:
- Check all cable connections and ensure battery/main fuse is okay.
- Test the power source (vehicle outlet or hardwiring kit).
- If issue persists, try another cable or contact support as internal repairs may be necessary.
- If no lights or sounds are produced:
Troubleshooting table
| Symptom | Possible cause | Solution |
|---|---|---|
| No LEDs or chime when car starts | Blown fuse, loose cable, no power | Replace fuse, check connections, test cable |
| Dashcam shuts off after a few minutes | Voltage cutoff, low battery | Adjust cutoff on Power Magic or recharge battery |
| Restarts or random shutdowns | Unstable connection, SD card error | Check wiring/SD card, replace if needed |
| Only some LEDs on, camera does not boot | Power supply interruption | Test with fresh SD card, reset connections |
| Dashcam won’t power on at all | Defective hardware or battery | Try different power/battery, service if needed |

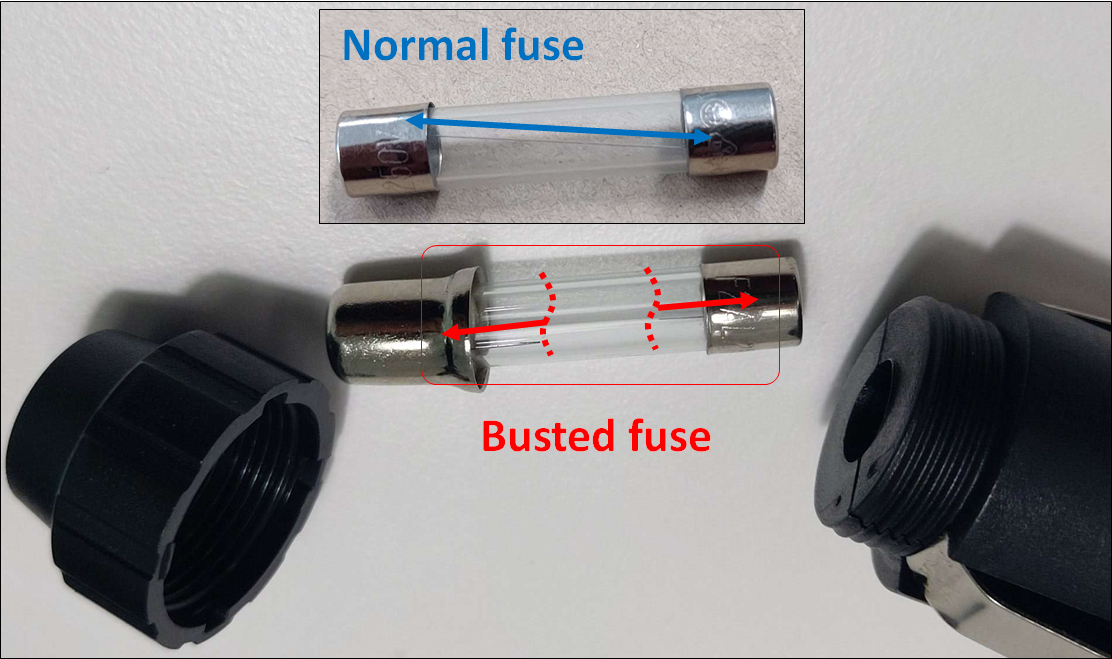

Example of blown fuse:
Best practices
- Wait 10 seconds after shutting off vehicle before unplugging cables or removing the SD card.
- Regularly clean and check power cables, and replace at first sign of damage.
- For battery packs, recharge regularly and store above freezing to preserve health.
- If using parking mode, ensure your battery protection device is set to prevent excessive vehicle battery drain.
Proper booting and power management keep your dashcam ready to record every trip and event, while ensuring the integrity of your video files and the longevity of your device. For persistent power or booting issues, consult BlackVue Customer Support for further assistance.
