The Power Magic Pro powers your dashcam when the engine is off by hardwiring it to the car battery. A low voltage power cut-off function and a parking mode timer protect your car battery from discharge.
Using the Parking Mode Switch, you can easily enable/disable parking mode, without affecting drive recording auto-start at ignition.
Power Magic Pro At a Glance
Product Specifications
- Rated Output Voltage: 12 - 24V DC
- Power Cut-off Timer Setting: 6 hours ~ infinity
- Output Current / Quiescent Current: Rated at 1A (Maximum 2A) / Below 200uA
- Power Cut-off Voltage (based on input voltage): 12V, 12.5V (+/-0.1V) / 22.8V, 23.2V (+/-0.1V)
- Power Restoration Voltage (based on the input voltage): Cut-off voltage +0.2V and higher

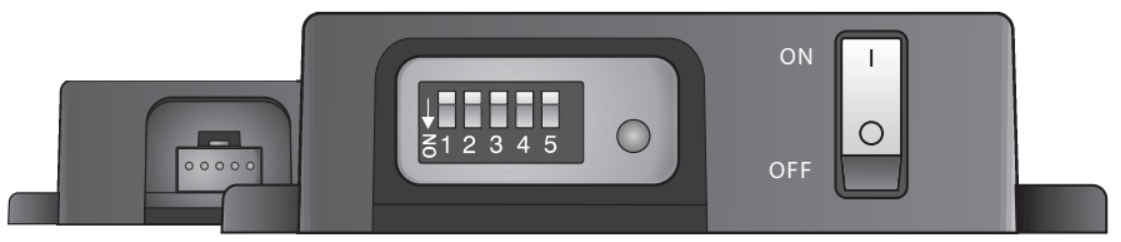

Settings
Before adjusting the cut-off voltage and timer switches, ensure you turn the Parking Mode Switch OFF and unplug the wire harness from the Power Magic Pro.

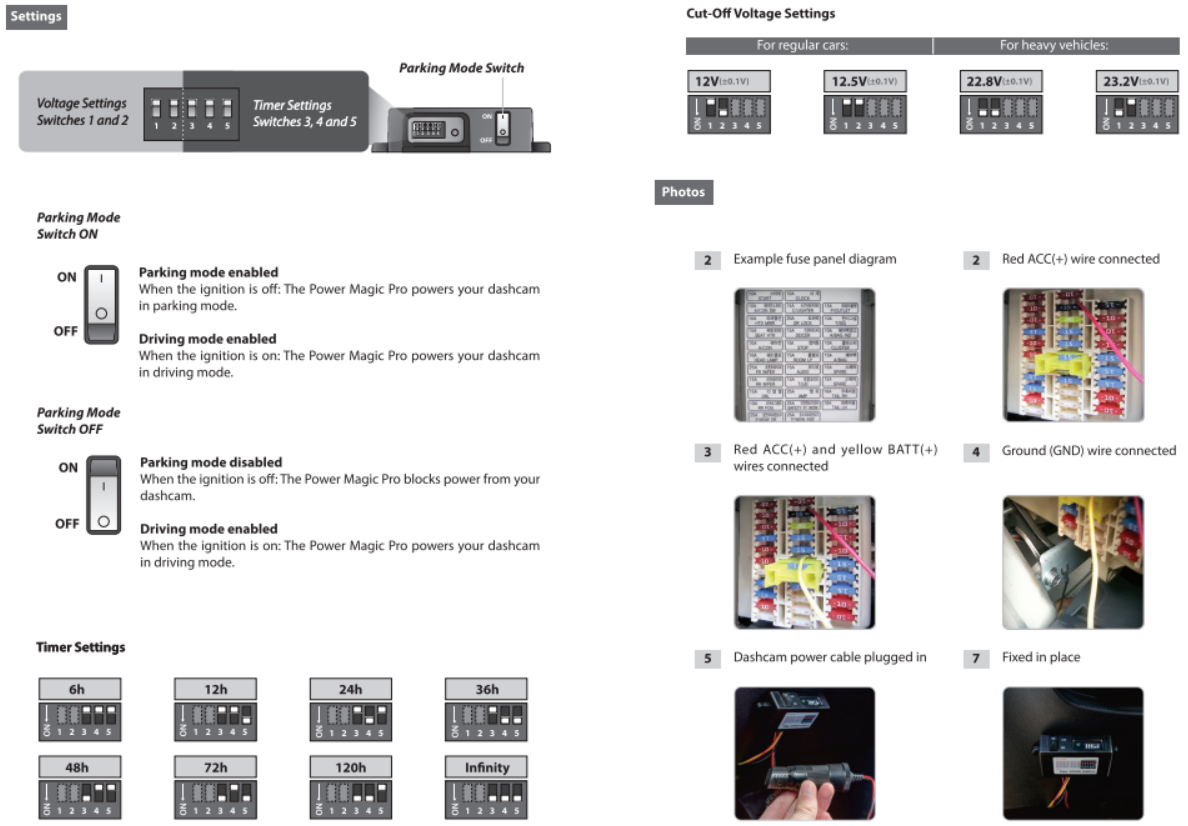

- Parking Mode Switch: The Parking Mode Switch lets you easily enable/disable parking mode without affecting drive recording. Regardless of whether the switch is ON or OFF, the Power Magic Pro detects when you start your engine and automatically powers your dashcam while driving
- Power Cut-off Settings: The Power Magic Pro will power your dashcam in parking mode until either your car battery voltage drops to the configured value or the configures timer elapses (whichever occurs first).
Troubleshooting
| Issue | Cause | What to check / Solution |
|---|---|---|
| Power Magic Pro does not turn on (LED off) | The GROUND wire is not connected properly. | Find a bolt in a suitable place near the fuse box and connect the end of the GROUND wire to the bolt. |
| Power Magic Pro does not power the camera (LED on) | Faulty female connector or output wires from the Power Magic Pro to the camera. | Check the cable for damage. If there is no visible damage, a replacement may be needed. |
| Power Magic Pro drains the car battery | The red wire is connected to CONSTANT and the yellow wire to ACC. | Connect the red wire to ACC and the yellow wire to the CONSTANT fuse in the car's fuse box. |
| Both the red and yellow wires are connected to the CONSTANT fuse. | ||
| Power Magic Pro turns off right after the engine is turned off | Both the red and yellow wires are connected to the ACC fuse. | Connect the red wire to ACC and the yellow wire to the CONSTANT fuse in the car's fuse box. |
To check the wiring with a voltmeter: the yellow wire (constant power) should read 11V or more whether the engine is on or off, and the red wire (switched power) should have voltage only when the engine is on. With the switch ON (I), the LED is green whether the engine is on or off (with the engine off, the yellow wire must read above 11.8–12V for the LED to turn on). With the switch OFF (O), the LED is green only while the engine is running.
If the issue is not solved, contact BlackVue Support.
Which fuse taps should I use?
All BlackVue dashcams require less than 1 Ampere current to power on. Therefore, a fuse tap between 1 Ampere (minimum) to 2 Ampere (maximum) can be used to hardwire the dashcam to the car's battery.
Blackvue provides the following 3 types of fuse taps to connect the Power magic pro to your car's fuse box.
The compatibility of the fuse tap with your car's fuse box can be affirmed with the car's manufacturer or dealers (some cars have this information in the manual).
Fuse tap: ATO fuse
Fuse tap: Low Profile mini Fuse
Fuse tap: Mini Fuse
Following is the technical specification of the fuse taps above.
You can also watch the video below on how to identify your fuse type.
FAQs
Is Power Magic Pro a battery pack?
*Power Magic Pro is not a battery that provides power to the camera when the car's engine is off. Rather, it is a device that is connected directly (hardwiring) to the car's fuse panel and supply power to the camera depending on the cut-off settings to prevent battery drain.
What are the wires of the Power Magic Pro?

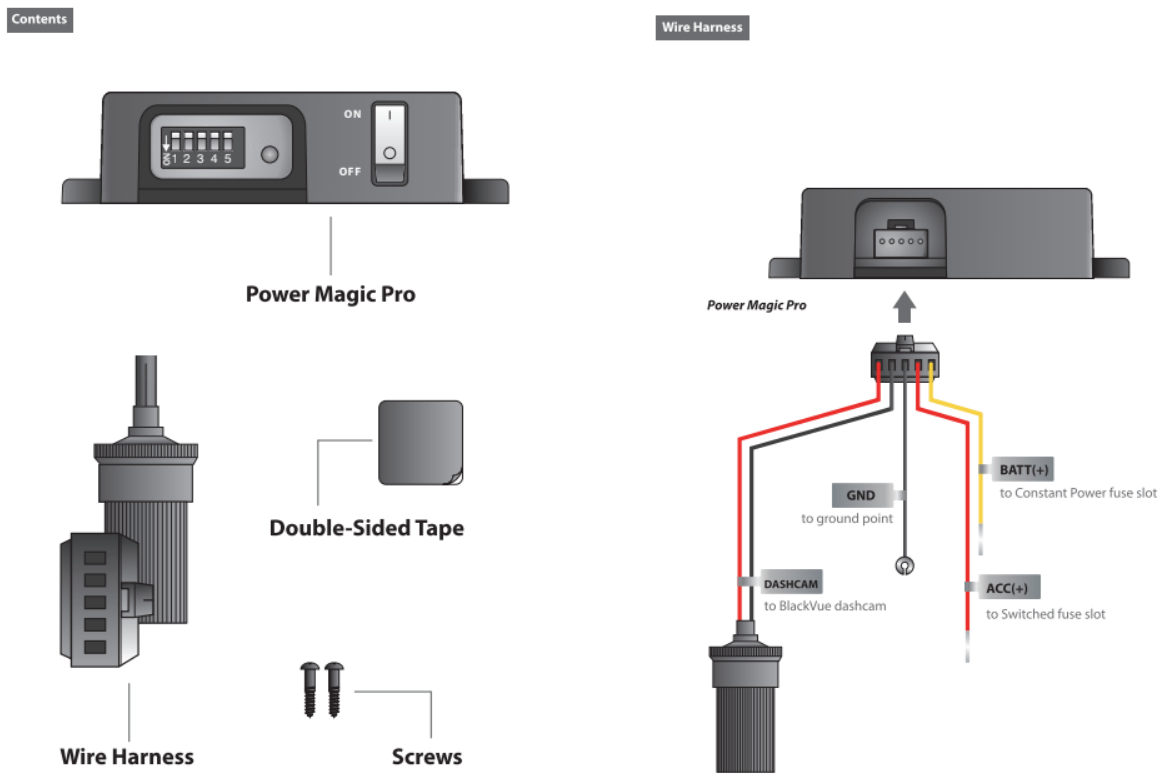

*The Power Magic Pro has three wires that should be connected to the car's fuse panel. The Yellow wire is the BATT+ wire that should be connected to a "constant" fuse. The Red wire is the ACC+ that should be connected to an "switched" fuse. The Black wire is the GND (ground) wire that should be connected to any bare, unpainted, metal part, usually to a bolt near the fuse box, for grounding.
*The other two wires (black and red) are connected to a female socket where the cigarette power cable of the camera should be plugged.
What are constant and switched fuses?
*A constant fuse is a fuse that remains active all the time, even if the car's engine is off. Some examples include fuse connections to the car's door lock, horn, etc.
*A switched fuse is a fuse that is only activated when the car's engine is on. Typical examples include fuse for the air-conditioning unit, radio, windows, etc.
Can I use only one cut-off setting at a time, deactivating the other?
*No. The voltage-cutoff setting is always activated to prevent car battery drainage. Also, the minimum timer-cutoff value is 6 hours.
Can I connect my Power Magic Pro to another battery pack?
*This may cause malfunctioning of the products. We also do not recommend a series connection of the PMP to any of our battery packs for safety reasons. Moreover, the input rated current of the PMP is lesser than the required charging current of the power magic battery pack/B-112 (3.5A) and power magic ultra batter/B-130X (5A).
