Power Magic Battery Pack (B-112) at a Glance

The Power Magic Battery Pack, also known as B-112 battery, is the BlackVue's first battery accessory for Parking Mode recording. - Purchase here

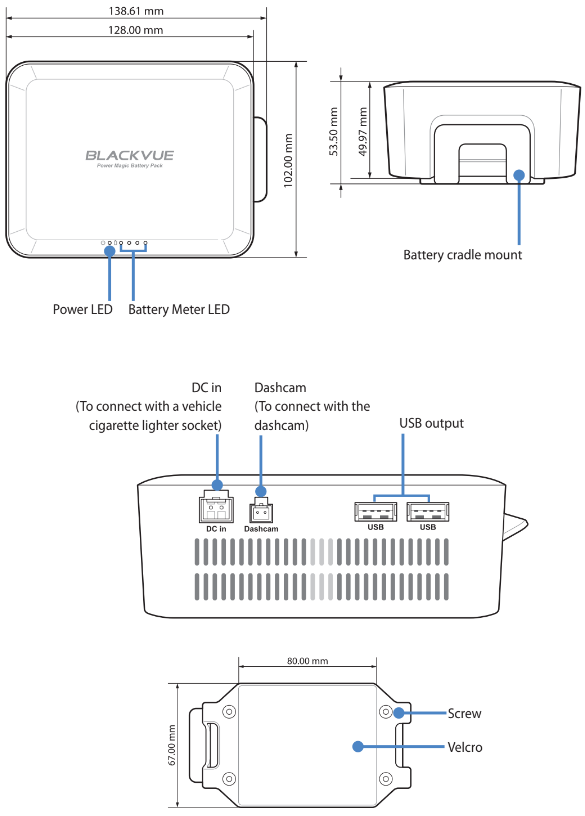

The following diagrams explain each part of the Power Magic Battery Pack.

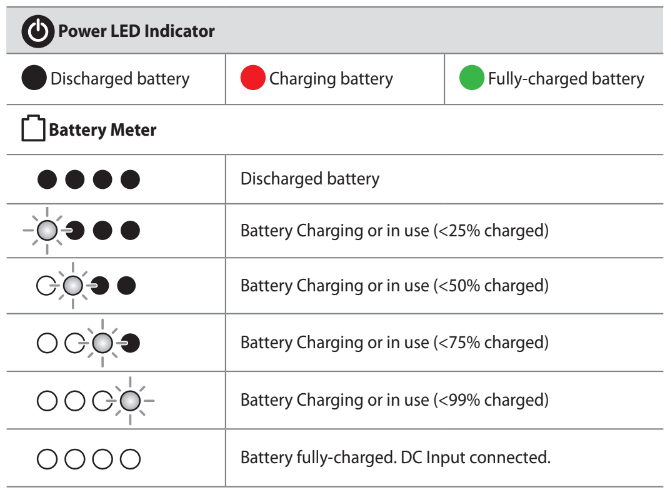

LED Indicators

Product Features

• Up to 12 hours use after 1 hour of rapid charging. (Based on a single dashcam that consumes 12 V / 2.8 kWh of energy)
• Compatible with both car (12 V) and heavy vehicle (24 V) electrical systems.
• When the engine is on, the power supply to the dashcam bypasses the battery.
• When the engine is off, output automatically switches to draw power from the battery
  pack.
• DIY installation – standard cigarette lighter socket and plug.
• 2 USB sockets (5 V) to charge other devices (smartphone, mobile Wi-Fi hotspot, etc.).

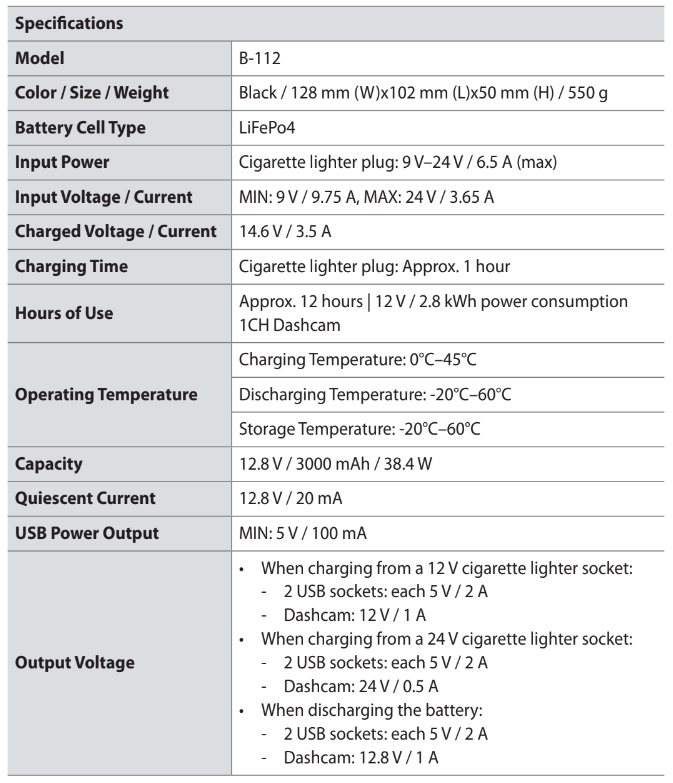

Product Specifications

USB Power Sockets

• The battery pack has 2 USB sockets(5 V) to charge other devices (smartphone, portable
  Wi-Fi router, etc).
• The battery pack can charge up to 2 devices and power the dashcam at the same time.
