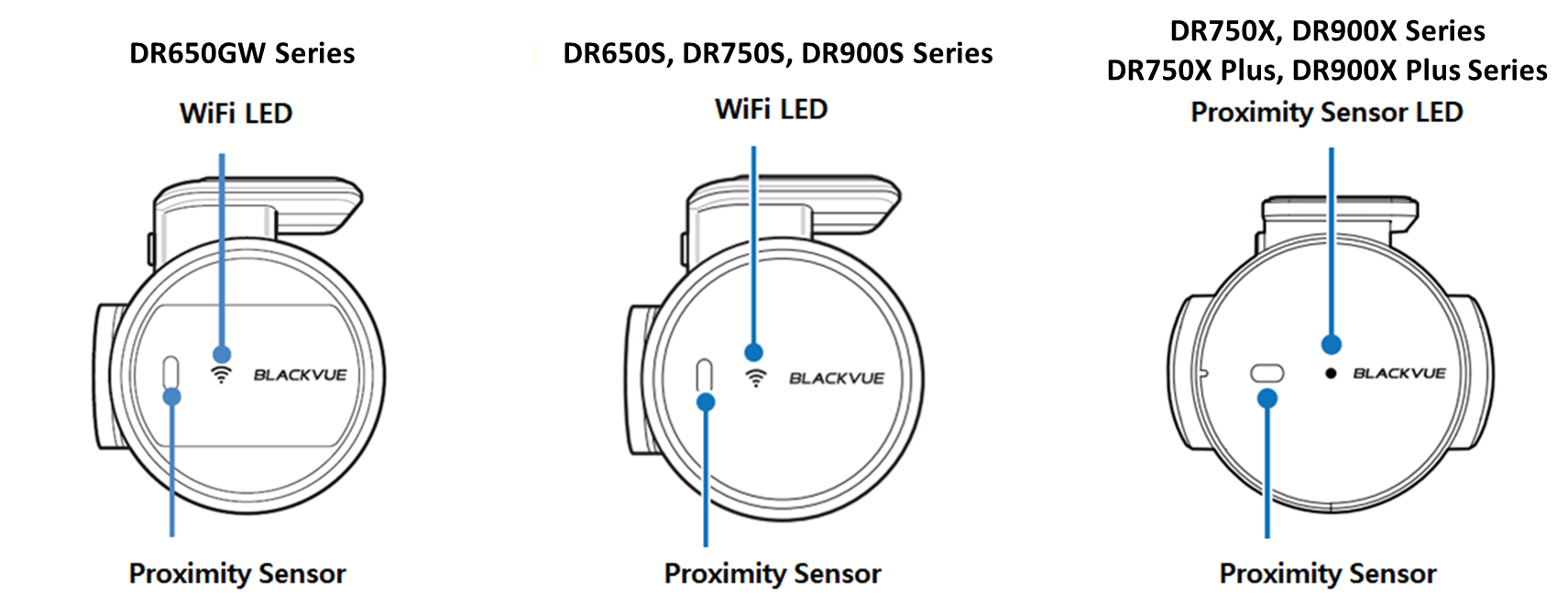

The proximity sensor is located on the side of the front camera, next to the WiFi icon for older models (refer to the image below).
With the exception of the DR750LW-2CH, DR590W Series, and DR590X Series, all the BlackVue dashcams with a built-in WiFi module have a proximity sensor.
The table below shows the functions of the proximity sensor according to different camera models.
| Camera Model | Function |
| DR650GW | Legacy Firmware (Non-Cloud): Audio Recording ON/OFF Cloud Firmware: Manual Recording trigger |
| DR650S | Default: Audio Recording ON/OFF Option 2: Manual Recording Trigger |
|
DR750S Series DR900S Series |
Default: Audio Recording ON/OFF Option 2: Manual Recording Trigger Option 3: OFF (Disable) |
|
DR750X, DR750X Plus Series DR900X, DR900X Plus Series DR750 LTE Series |
Default: Audio Recording ON/OFF Option 2: Manual Recording Trigger Option 3: OFF (Disable) |

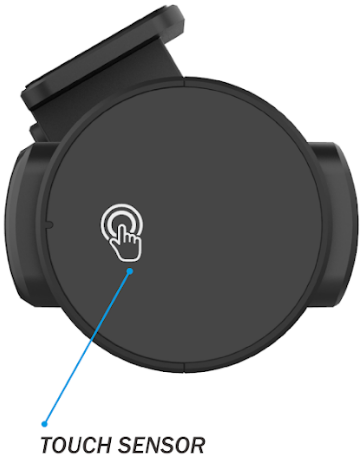

The proximity sensor was replaced by the touch sensor for the following camera models:
- ELITE Series
- DR770X Series
- DR970X and DR970X Plus Series
- DR770X LTE Series
- DR970X LTE Series
The touch sensor can either be disabled or enabled to trigger Manual Event recordings.
The DR770X BOX and DR970X BOX Plus camera series has a wireless SOS button instead of the proximity or touch sensor that triggers Manual Event recording when pressed.
The SOS Button should be registered to the main camera unit upon installation. This button is also compatible with the ELITE dashcams.
NOTE ON COMPATIBILITY
EB-1 (SOS Button)
- DR970X BOX Plus
- DR770X BOX Pro
- DR770X BOX
EB-1B (SOS Button)
- ELITE 10
- ELITE 9
- ELITE 8
- DR770X BOX Pro
Other built-in sensors
- Impact sensor (G-sensor): measures movement on three axes and records an Event file when it detects an impact, hard braking or a bump, while driving or parked. You can adjust the sensitivity in the app or BlackVue Viewer. If it is too high, road bumps may create unnecessary events; if it is too low, real impacts may be missed.
- Motion detection: in Parking Mode, the camera analyzes the video for movement in front of the car (and, depending on the model, at the rear or interior) and saves a recording when it detects motion. Sensitivity can also be adjusted.
