Proper installation of your BlackVue dashcam is crucial for optimal performance, safety, and longevity. Follow these guidelines for a clean, secure fit—whether you’re using the latest X-Series, a dual-channel model, or an add-on module.
1. Preparation and safety
- Turn off the vehicle’s engine and remove keys before starting installation.
- Gather all components: front/rear cameras, mounts, cables, power accessories (hardwire kit or cigarette adapter), cleaning supplies, and a plastic trim/pry tool.
2. Location selection guidelines
- Front camera: Place behind the rearview mirror, high enough to avoid blocking the driver’s field of vision.
- Rear camera (if applicable): Attach at the top center of the rear windshield or, for specialized models, as directed in the manual.
- Clear visibility: Ensure the lens faces the road with an unobstructed view—avoid tint lines, sensors, or window stickers.
- Power module/Battery: Install near the vehicle’s fuse box or in the glove compartment for easy access.
Tip: Choose installation spots away from airbags, especially when routing cables behind trim panels.
3. Surface preparation
- Clean the mounting areas with an alcohol pad to remove dust, oil, and moisture.
- Allow surfaces to dry completely before applying adhesive mounts.
4. Step-by-step installation

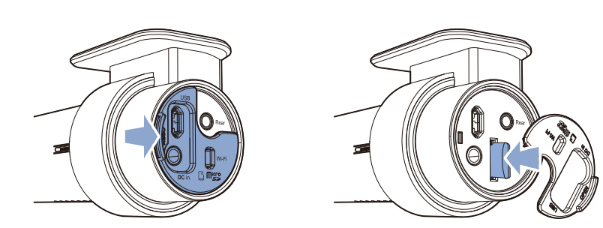

A. Insert the microSD card
- Open the SD card slot cover on the front camera.
- Gently insert the card until it clicks into place; close the cover.
B. Mount the front camera

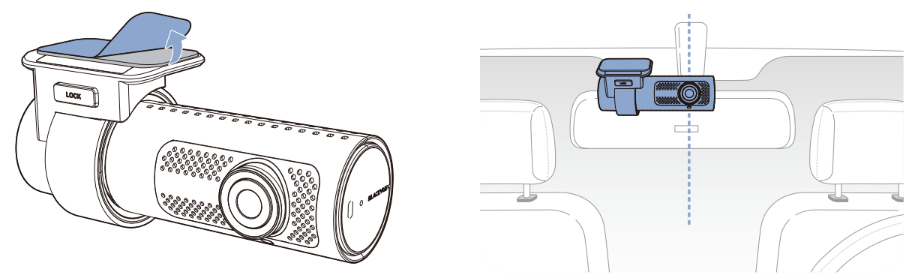

- Peel off the adhesive film from the bracket’s tape.
- Attach the camera firmly to the windshield, behind the rearview mirror.

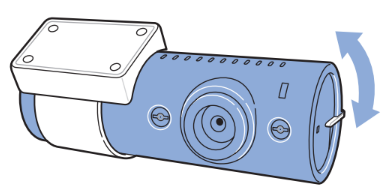

Adjust the lens angle. For most vehicles, a slight downward tilt (~10°) yields a 6:4 road-to-sky ratio for optimal footage.
C. Mount the rear camera (dual/triple models)
- Peel adhesive film and fix the rear camera at the windshield’s center top.
- Adjust the angle as needed.
D. Connect cameras

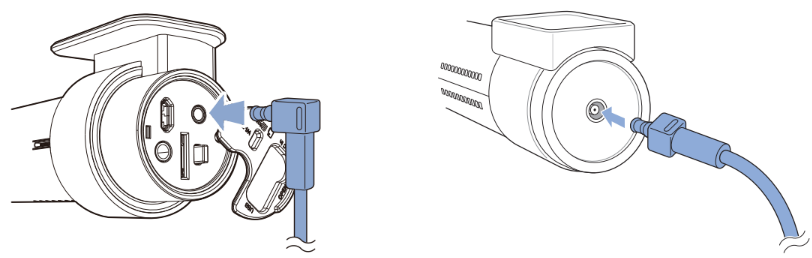

- Plug the rear camera cable (coaxial/analog per model) into the front unit, then into the rear camera.

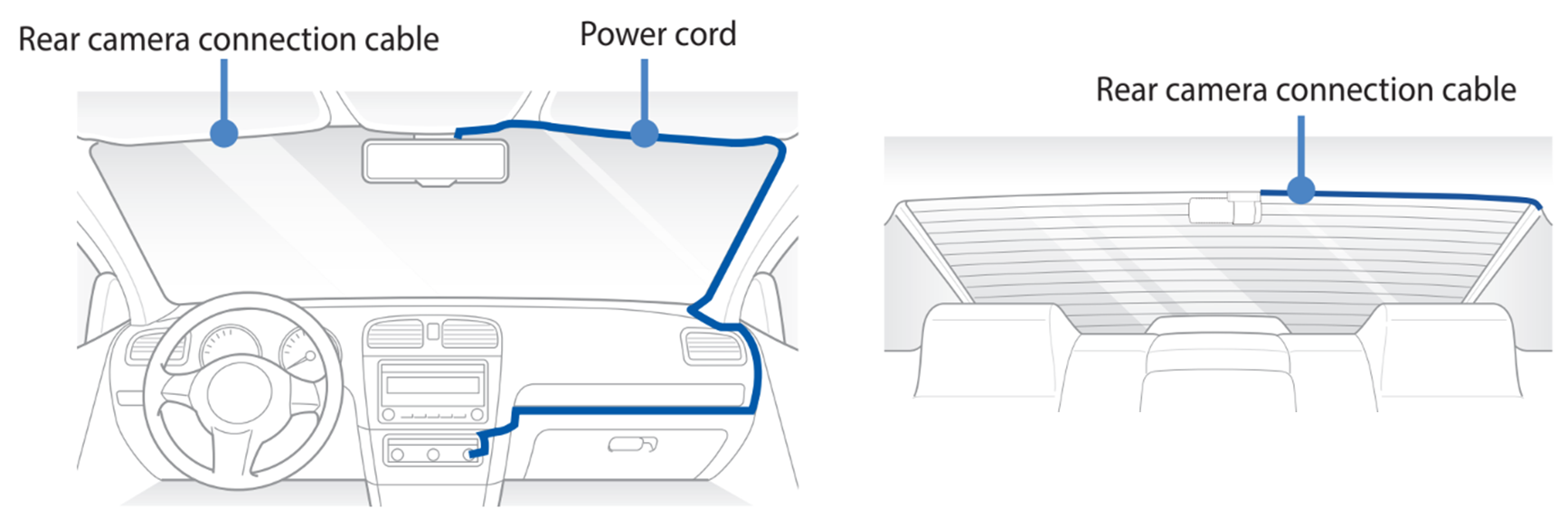

- Tuck cables along the headliner and rubber weather seals using a trim tool for a neat finish.
E. Connect the power cable
- Cigarette lighter adapter: Plug into the vehicle’s 12V outlet for easy, non-permanent setups.
- Hardwiring (for parking mode/advanced features): Use the 3-wire hardwire kit (ACC/BATT/GND) and connect to the respective fuses and an unpainted metal ground point. Use fuse taps as required.
For add-on battery packs, connect as per the battery kit instructions.
F. Hide and secure cables
- Run cables behind trim panels, under floor mats, or along headliners to keep them out of sight and away from moving parts.
- Use cable clips and zip ties to secure excess slack.
G. Power on and test
- Start the engine or turn on accessory power.
- Confirm camera LEDs and chime indicate normal operation. Check live view via the BlackVue app for precise camera alignment.
5. Common tips for reliable installation
- Do not remove power during initial boot or while formatting the SD card.
- Double-check all connections (firm cable insertions, correct fuse taps, and secure mounting).
- Avoid blocking airbag deployment zones when tucking cables.
- Leave a small service loop (extra slack) near connection points for easy disassembly in the future.
- Download and register with the BlackVue app for customer support and wireless setup.
- Test Parking Mode functions if hardwired or using a battery pack, and adjust power management settings as needed.
6. Frequently asked installation questions
| Issue | Solution/Tips |
|---|---|
| Mounting tape won’t stick | Clean glass thoroughly; use new adhesive or warm the tape slightly before applying |
| Rear camera video not displaying | Recheck rear cable connections at both ends; ensure use of correct cable type |
| Parking mode or battery issues | Hardwire to fuse box as per guide, validate low voltage settings, ensure correct wiring |
| No power or LEDs | Confirm fuse/cable compatibility, check for blown fuse, reseat all connections |
| Annoying cables visible | Use trim tools to gently tuck cables along moldings and under panels |
| Camera out of alignment | Use the BlackVue app’s live view function to set precise framing before final tightening |
7. Best practices and additional resources
- Always follow the model-specific user manual for unique steps or features.
- Professional installation is recommended for hardwiring or complex setups.
- For truck/box/3-channel models, refer to additional guides and videos for multi-cam layouts and box installation specifics.
- Use only genuine BlackVue accessories and cables for guaranteed compatibility.
A careful, organized installation extends your dashcam’s life and ensures all its safety features work as intended—from daily recording to parking surveillance and event uploads.
