Protecting your vehicle’s battery is essential when using parking mode or external power accessories with a BlackVue dashcam. Low voltage cutoff is an automatic battery protection feature that prevents excessive battery drain by disconnecting dashcam power once voltage drops below a safe threshold.
Note: Menu names and cutoff values may differ slightly depending on your BlackVue model and firmware.
What is Low Voltage Cutoff?
Low voltage cutoff is a safety mechanism built into BlackVue dashcams and their power accessories (like Power Magic Pro) that monitors your vehicle’s battery voltage. When the battery level drops to the set voltage threshold, power to the dashcam is automatically cut off—ensuring there's enough power left to start the vehicle and avoiding battery damage.
How It Works
- Continuous monitoring: While the dashcam is in parking mode (engine off), the device or accessory monitors battery voltage at regular intervals.
- Threshold-based action: Once battery voltage hits or drops below the defined cutoff value (e.g., 12.0V), the dashcam is powered down to protect the car battery.
- Automatic restoration: Power is restored only after the battery voltage rises again (e.g., after engine start).
Typical Cutoff Values & Recommendations
| Mode / Season | Recommended Voltage Cutoff | Why Use This Setting? |
|---|---|---|
| All seasons | 12.0V – 12.5V | Standard; safe for most vehicles |
| Winter | 12.2V – 12.5V | Extra caution as low temps reduce battery performance |
- Going below 12.0V increases the risk of an unstartable car, especially in cold weather; higher settings offer more protection.
- Most BlackVue dashcams and accessories let you adjust the cutoff from 12.0V up to 12.5V in 0.1V increments.
Where Low Voltage Cutoff is Found
Built-in to Modern Dashcams
- From X-Series BlackVue models (e.g., DR590X, DR750X, DR900X, DR970X) offer integrated low voltage protection, no external module needed.
- Settings are available in the BlackVue app under Battery Protection.
Power Accessories
- Power Magic Pro and equivalent hardwire kits: Provide manual adjustment for both voltage and timer cut-off, suitable for older or non-X-Series BlackVue models.
- For battery packs (like B-124X), the battery is protected by internal circuitry, not voltage cutoff; check individual accessory specs.
How to Set/Adjust Low Voltage Cutoff

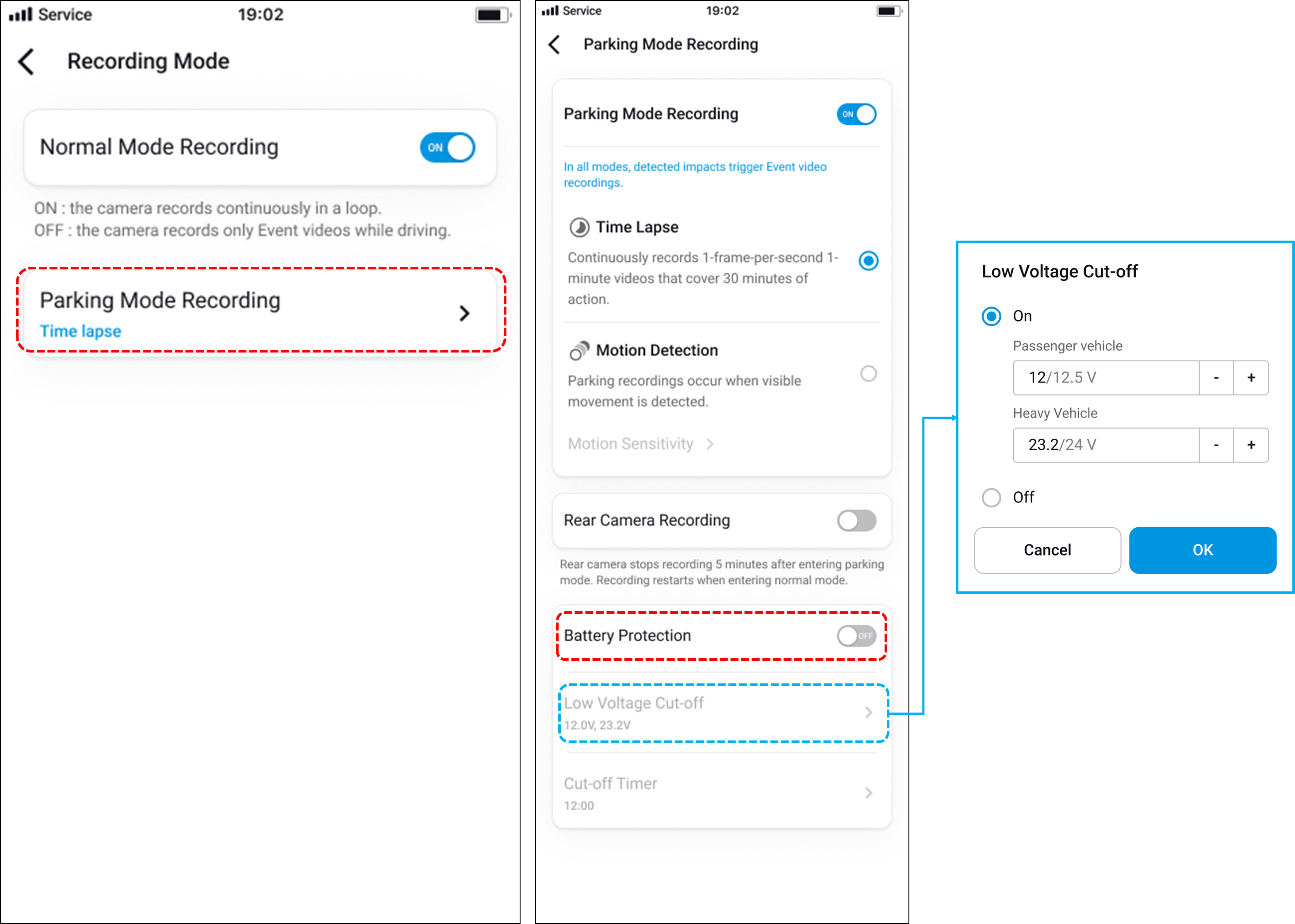

In the BlackVue app:
- Go to Camera Settings > Power Management or Battery Protection.
- Adjust the voltage cutoff (e.g., 12.0V, 12.2V, 12.4V).
- On Power Magic Pro:
- Use the external switch to select your voltage (e.g., 12.0V or 12.5V).
- Optionally set a timer for maximum parking duration.
Notifications and Camera Shutdown
- The system provides an app or voice notification (“Low voltage detected, powering down soon.”) as the voltage approaches the pre-set cutoff.
- Dashcam will cease recording and automatically power off when the threshold is reached.
- To resume recording, start the vehicle and recharge the battery; automatic power restoration will occur after battery recovery.
Troubleshooting and Tips
| Issue | Solution |
|---|---|
| Car won’t start after parking mode | Raise cutoff value (≥12.2V) for winter or older batteries |
| Dashcam powers off too early | Lower cutoff (no lower than 12.0V) if battery is healthy |
| No low voltage cut-off available | Use a Power Magic Pro or compatible hardwiring kit |
- For maximum battery life, do not set cutoff below 12.0V.
- In cold climates, always use a higher cutoff (12.2–12.5V) to ensure your battery starts reliably.
- Monitor battery health periodically, especially if using parking mode frequently or for extended durations.
Low voltage cutoff is essential for safe, worry-free operation of your BlackVue dashcam—helping you enjoy 24/7 surveillance without risking your car’s ability to start.
