Learn how to install the BlackVue Power Magic Battery pack, a.k.a. B-112 battery.

Installation Tutorial:

STEP 1

Fix the Power Magic Battery Pack in place.
We recommend attaching it to the side of the passenger side footwell (see step 5).

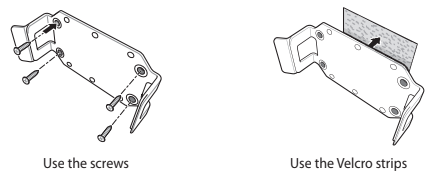

Use the supplied Velcro strips and/or screws to fix the product in place.

Note: Velcro strips cannot be attached to fabric material.

STEP 2

Plug the DC in power cable into the battery pack’s “DC in” port. Plug the other end of the DC in power cable (the cigarette lighter plug) into the vehicle’s cigarette lighter socket.

STEP 3

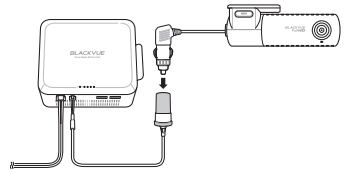

Plug the Output cable into the port labeled “Dashcam” on the battery pack.

STEP 4

Plug your dashcam’s power plug into the cigarette lighter socket on the battery pack’s Output cable.

Note: To ensure good electrical contact you can use electrical tape to tape the plug and socket together.

STEP 5

Use the pry tool to lift the edges of the windshield trim/molding and tuck in the power cord.

Caution: Do not expose the product to direct sunlight and/or heat.

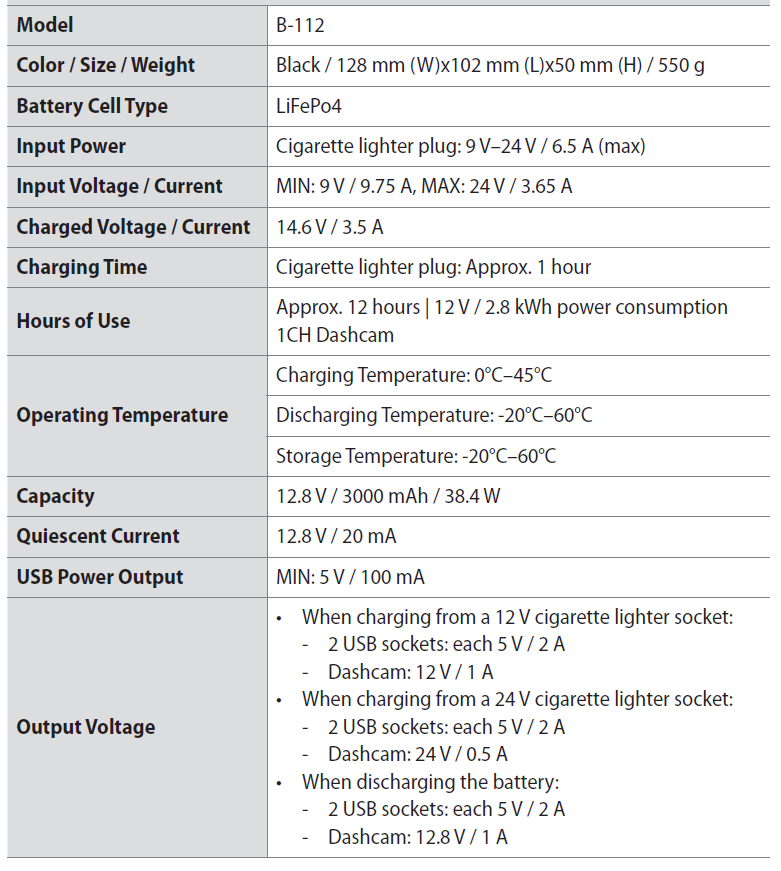

Product Specifications:

*You can download the detailed product manual from our website.
